D28 Diagonal Holes Welding Table
D28 Diagonal Holes Welding Table – Advanced Modular Fixturing Solution
Professional D28 Diagonal Holes Welding Table for Flexible Welding & Precision Fabrication
The D28 diagonal holes welding table is an advanced modular welding platform developed for high-precision welding, large structural fabrication, robotic automation, and industrial assembly applications. Compared with standard hole layouts, the diagonal hole design provides more flexible fixture positioning and multi-directional clamping possibilities, significantly improving efficiency during complex welding operations.
This D28 welding table features a 28 mm hole system combined with a diagonal grid arrangement, allowing operators to achieve more accurate positioning angles and optimized fixture configurations. It is especially suitable for large workpieces, irregular structures, frame welding, heavy steel fabrication, and automated production lines.
Manufactured from premium Q355 high-strength steel and processed by large CNC gantry machining centers, the D28 diagonal holes welding table delivers superior flatness accuracy, excellent structural rigidity, and long-term dimensional stability. The table surface is treated with advanced plasma nitriding technology, greatly enhancing hardness, wear resistance, anti-spatter performance, and corrosion protection.

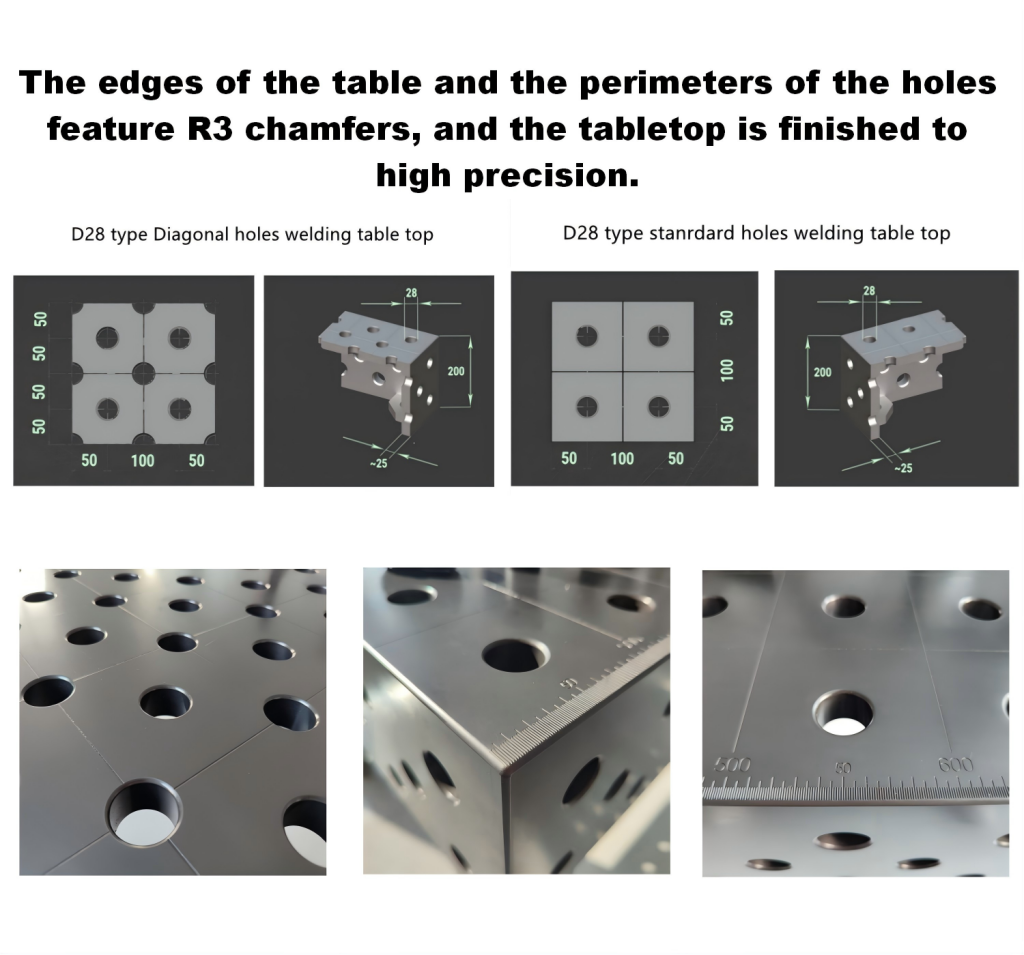

Innovative Diagonal Hole Design
The diagonal hole arrangement is one of the key advantages of this D28 welding table system. Compared with traditional straight-grid hole layouts, diagonal holes provide:
1.More flexible fixture positioning
2.Additional clamping angles
3.Faster setup efficiency
4.Better support for irregular workpieces
5.Improved accessibility during welding operations
This design is widely preferred in robotic welding systems and high-precision fabrication workshops.
High Precision CNC Machining
Every D28 diagonal holes welding table is processed by advanced CNC machining equipment to ensure highly accurate hole positioning and excellent surface flatness.
Precision Features:
1.Flatness accuracy ≤0.1 mm/m²
2.Accurate D28 hole tolerance
3.Stable positioning performance
4.Consistent repeatability
5.Precision multi-surface machining
The precise hole system improves fixture compatibility and ensures reliable positioning for repeated production tasks.
Heavy-Duty Structure & Premium Materials
The D28 diagonal holes welding table is manufactured from high-quality Q355 steel with reinforced internal rib structures for maximum strength and rigidity.
Structural Advantages:
● High load-bearing capacity
● Excellent anti-deformation performance
● Stable heavy-duty construction
● Long-term industrial durability
The heavy-duty structure makes the table suitable for large steel structures, frame welding, machinery fabrication, and automated welding production lines.
Plasma Nitrided Surface Treatment
The tabletop surface can be treated with plasma nitriding technology to achieve superior hardness and protection performance.
Surface Treatment Benefits:
● Surface hardness up to 550-650 HV
● Excellent anti-spatter performance
● Improved wear resistance
● Rust and corrosion protection
● Easy maintenance and cleaning
The nitrided surface effectively prevents welding slag adhesion and extends the service life of the welding table.
Flexible Modular Fixturing System
The D28 diagonal holes welding table is compatible with a full range of modular fixturing accessories, including:
● Fast locking bolts
● Welding clamps
● Angle squares
● Positioning pins
● Stops and supports
● Adjustable brackets
● Extension blocks
The modular system allows users to quickly create customized fixture solutions for different welding and assembly applications.
Wide Industrial Applications
The D28 diagonal holes welding table is widely used in:
● Heavy steel fabrication
● Robotic welding automation
● Automotive manufacturing
● Machinery production
● Aerospace component assembly
● Metal structure fabrication
● Industrial equipment manufacturing
● Precision fixture positioning
OEM & Custom Manufacturing
We provide full OEM and ODM customization services, including:
● Custom table sizes
● Oversized welding platforms
● Non-standard hole layouts
● Special support structures
● Table extension modules
● Custom fixtures and accessories
Product Advantages
● Innovative diagonal hole design
● High precision CNC machining
● Heavy-duty Q355 steel structure
● Plasma nitrided anti-spatter surface
● Excellent flatness accuracy
● Flexible modular fixturing system
● Strong load-bearing performance
● Long service life
● Custom sizes available
● ISO certified manufacturing process
Our D28 diagonal holes welding table is designed to improve welding precision, increase fixture flexibility, reduce setup time, and enhance productivity for modern industrial fabrication environments.
