D16 D28 Welding Table Fixture System
Professional D28 Welding Table for Heavy-Duty Fabrication & Robotic Welding
The D28 standard holes welding table is a high-precision modular fixturing platform developed for heavy-duty welding, industrial fabrication, robotic automation, and precision assembly applications. Featuring a standardized 28 mm hole system with a 100x100 mm grid layout, the table provides accurate positioning, strong fixture compatibility, and highly efficient welding operations.
This D28 welding table is widely used in steel structure fabrication, robotic welding systems, machinery manufacturing, automotive production, industrial assembly lines, and large metal component positioning. The modular design allows flexible fixture configurations and significantly improves welding accuracy and production efficiency.
Manufactured using premium Q355 high-strength steel and advanced CNC gantry machining technology, our D28 standard holes welding table delivers excellent flatness accuracy, stable structural rigidity, and long-term dimensional stability. The tabletop is available with plasma nitriding surface treatment, greatly enhancing hardness, anti-spatter performance, corrosion resistance, and service life.
High Precision Welding Table Fixtures Compatible with D16 & D28 Systems
Our welding table fixtures are engineered for professional welding, fabrication, assembly, and industrial manufacturing applications. Designed to work seamlessly with D16 welding tables, D28 welding tables, and other major modular fixture systems, these fixtures provide flexible positioning, strong clamping force, and high repeatability for efficient workshop operation.
Manufactured from high-strength steel and precision CNC machined for excellent dimensional accuracy, our fixture systems help improve welding precision, reduce setup time, and increase production efficiency. Whether used for robotic welding, manual fabrication, metal assembly, or custom fixture setups, these welding table accessories provide stable and reliable workpiece positioning.
The modular design allows users to quickly build custom welding setups for different workpieces and production requirements. All fixture components are designed for easy installation and compatibility with most international fixture standards, making them ideal for upgrading existing welding tables without replacing the entire system.
Our welding table fixtures are widely used in automotive manufacturing, metal fabrication workshops, machinery production, aerospace industries, and industrial automation applications.
Compatible Systems
Our fixtures are fully compatible with:
● D16 Welding Table Systems
● D28 Welding Table Systems
● European Standard Fixture Tables
● Modular Welding Fixture Systems
● Multiple International Welding Table Brands
Compatible accessories include:
● Clamping bolts
● Positioning pins
● Angle brackets
● Stops and spacers
● Clamps and fasteners
● Support blocks
● Connection elements
Manufacturing Process
High-Strength Steel Material
Premium-quality steel provides excellent durability, wear resistance, and long-term stability.
CNC Precision Machining
Advanced CNC machining ensures accurate dimensions, smooth surfaces, and precise hole positioning.
Heat Treatment & Surface Protection
Optional nitriding or blackened surface treatment improves hardness, corrosion resistance, and service life.
Strict Quality Inspection
Every fixture component undergoes dimensional inspection and compatibility testing before shipment.
Product Features & Advantages
Universal Compatibility
Designed for D16, D28, and many other modular welding table systems.
High Precision Positioning
Accurate machining ensures stable fixture installation and repeatable welding setups.
Strong Clamping Performance
Reliable holding force helps reduce welding deformation and improve fabrication quality.
Flexible Modular Design
Quickly create customized fixture layouts for different welding projects.
Durable Industrial Construction
Heavy-duty steel structure suitable for long-term industrial workshop use.
Fast Setup & Improved Efficiency
Reduce fixture adjustment time and improve overall production productivity.

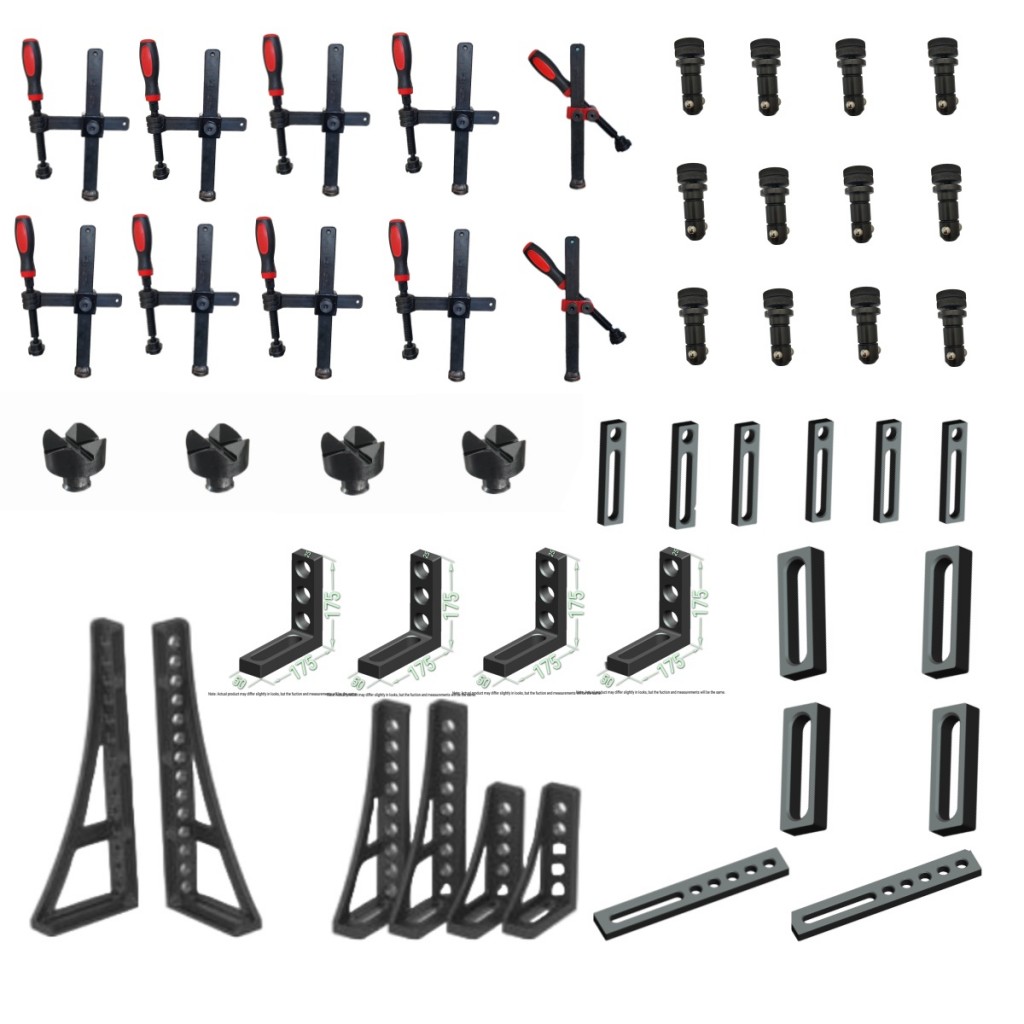

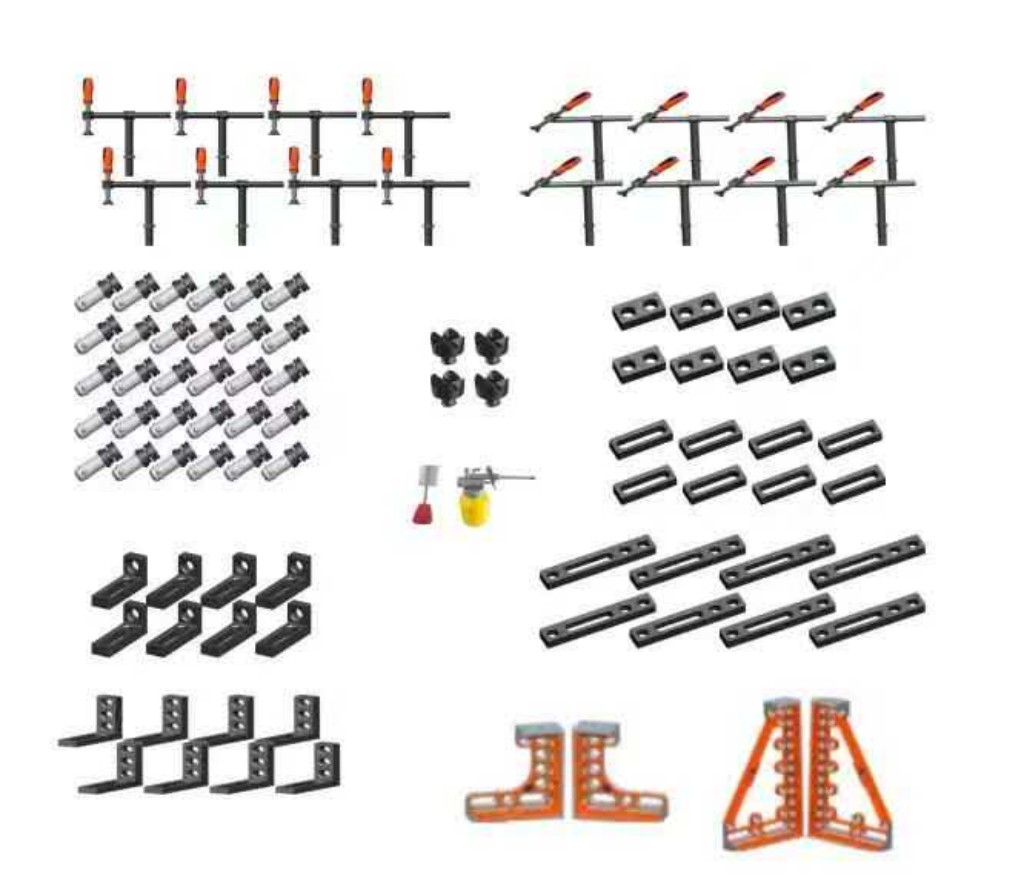

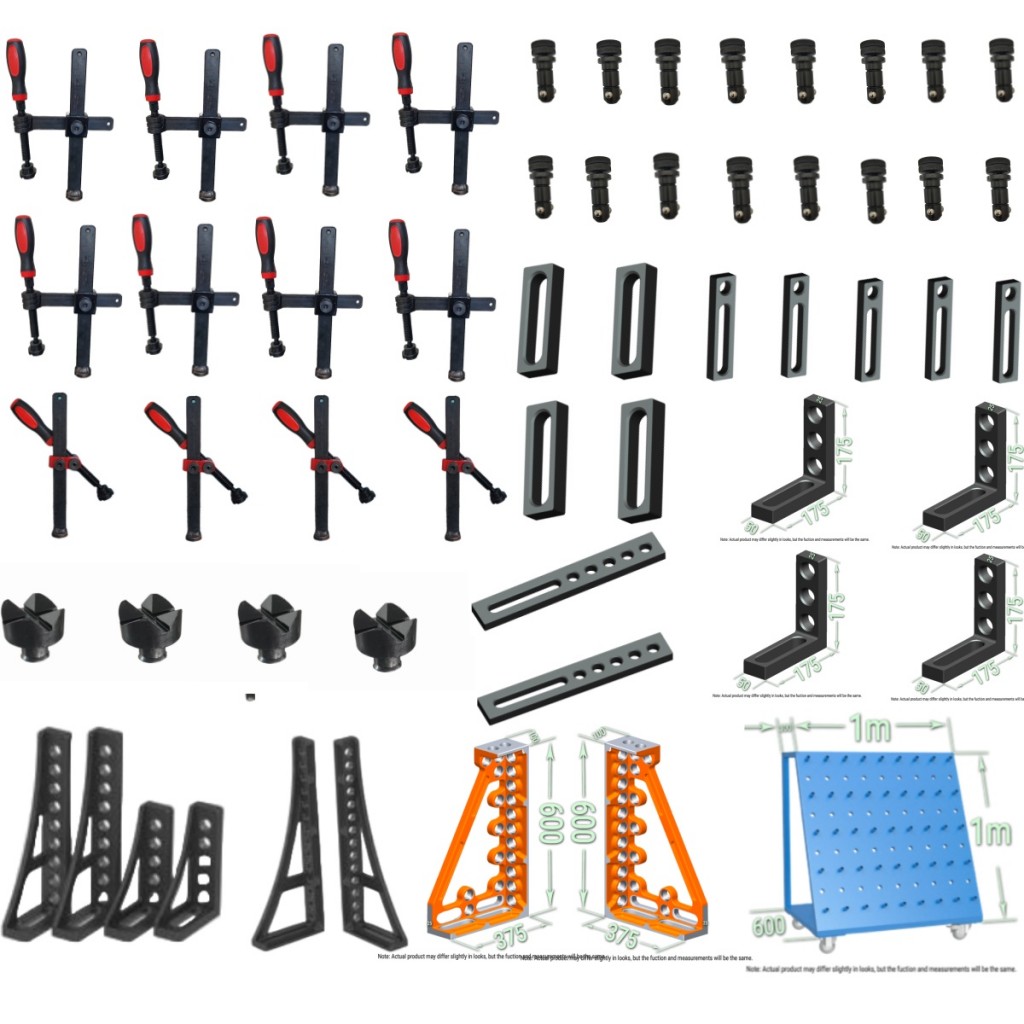

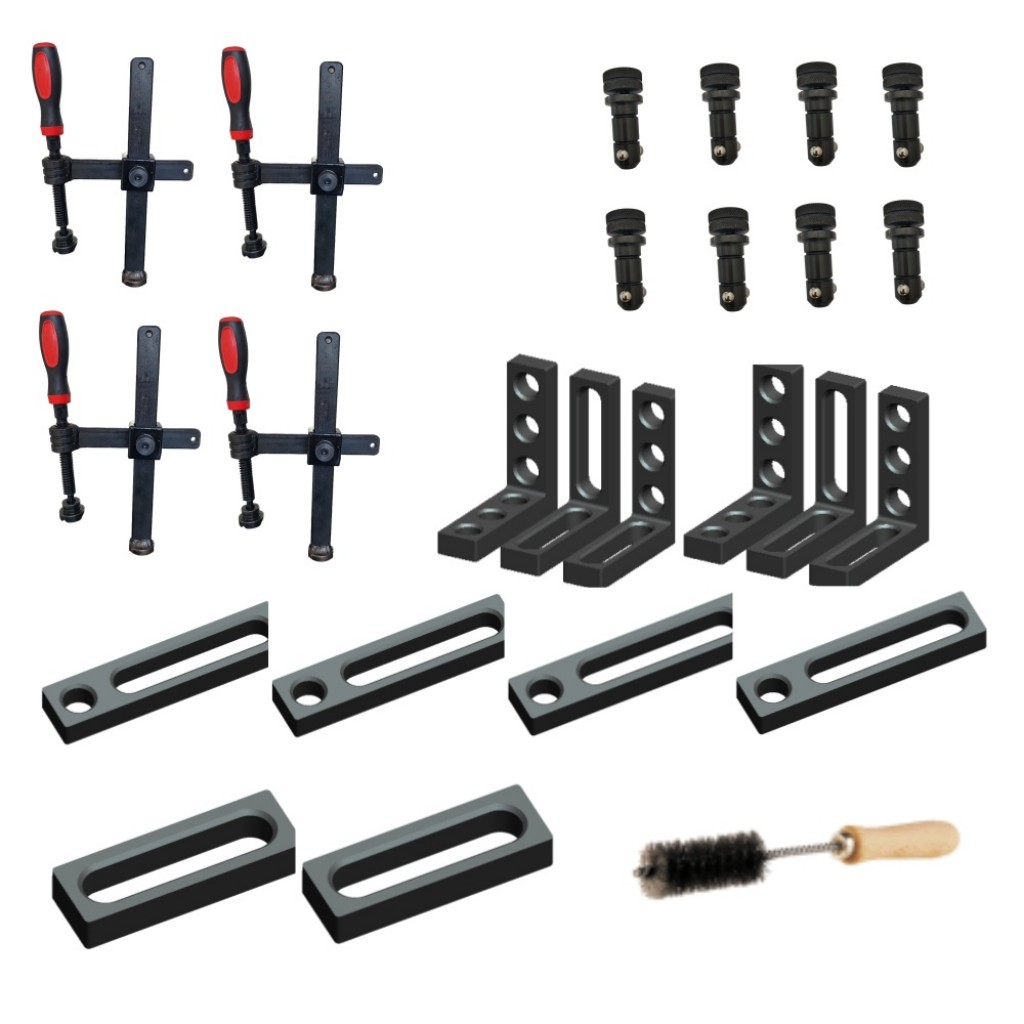

Available Fixture Types
● Welding Clamps
● Positioning Pins
● Angle Squares
● L-Shaped Brackets
● Stop Blocks
● Spacer Blocks
● Fast Lock Bolts
● Support Arms
● Extension Bars
● Connection Blocks
● Adjustable Stops
● Magnetic Positioning Tools
Custom fixture solutions are available according to customer requirements.
Applications
Our welding table fixtures are widely used in:
● Welding fabrication
● Metalworking workshops
● Robotic welding systems
● Automotive manufacturing
● Machinery assembly
● Steel structure fabrication
● Industrial production lines
● Aerospace fabrication
● Custom metal projects
Suitable for professional fabricators, industrial manufacturers, and automation production systems.
Product Specifications
|
Item |
Description |
| Compatible Systems | D16 / D28 / Other Brands |
| Material | High-Strength Steel |
| Surface Treatment | Nitrided / Blackened / Machined |
| Machining Process | CNC Precision Machining |
| Hardness | Optional High Hardness Treatment |
| Accuracy | High Precision Positioning |
| OEM & ODM | Supported |
| Packaging | Export Standard Packaging |
Why Choose Us
● Professional welding fixture manufacturer
● Rich experience in modular welding systems
● Advanced CNC machining capability
● Strict quality control system
● OEM & ODM customization available
● Competitive factory pricing
● Fast international delivery
● Compatible with global welding table standards
We provide complete welding fixture solutions for industrial fabrication and precision welding applications worldwide.
