OEM China Welding Fixture Table - D28 3D welding table – Bocheng

Tables of the following sizes are in stock

We can customize tables of different sizes according to your requirements

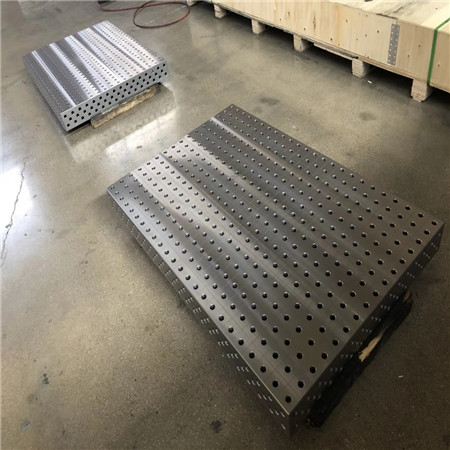

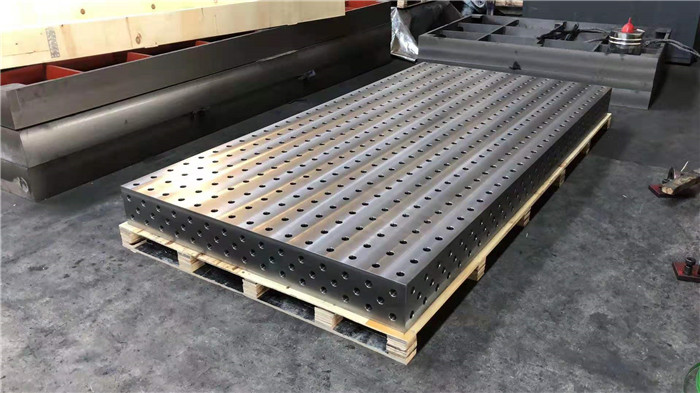

3D Welding table: five working surfaces the locating piece can be installed on. Also can be extended via any of its five working surfaces.
• For its material divided into: Steel Welding Tables and Cast iron Welding Tables
• For its hole diameter divided into: D28 series ,D22 series and D16 series.
Diagonal Grid: D28 and D22 is 100*100mm; D16 is 50*50mm
Supporting: legs, steel frame according to the requirement.
Components can be equipped after your selecting:
1, Tools for supporting: U-Shaped cube case, L-shaped cube case, Angle supporting, and Angle gauge
2, spare parts for Locating:
3, Tools for clamping and fixing
4, spare parts for locking working piece
5, Auxiliary Tools

Features
• Almost all workpiece can be fixed precisely at certain points or surfaces with locating piece, adapting piece, fastening piece and supporting piece, in the process of assembling or welding.
• Imprecise dimensions of workpiece can be adjusted during preliminary working process.
• It is easy to use existing parts in the workshop to imitate workpiece assembly via CAD.

Economical
• Save much cost instead of reserving a lot of complicated and expensive traditional fixtures
• Applies to various working conditions without the need of any modification
• Easy and safe to operate.

Flexible
• Solid enough to bear extremely heavy loads.
• Five surfaces, regular holes and grid lines(no inclined holes or T-shaped grooves)
• Any workpiece can be fixed and clamped on the table with locating pins
• 3D welding tables can link together against any of its five surfaces.

Precise
• Almost all workpiece can be fixed precisely at certain points or surfaces with locating piece, adapting piece, fastening piece and supporting piece, in the process of assembling or welding
• Imprecise dimensions of workpiece can be adjusted during preliminary working process.
