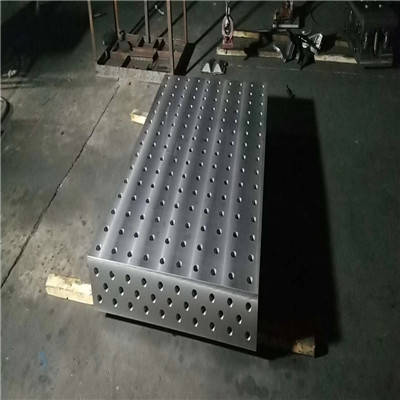

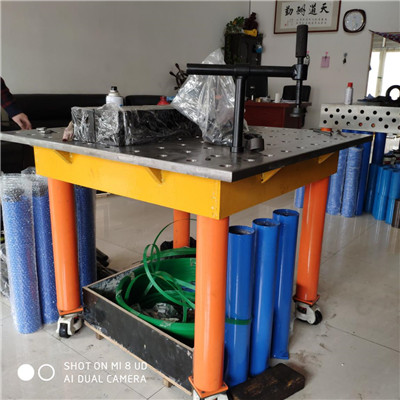

Finished 3 sets 1500x100x200 3D welding table system and 14 sets 2D welding system for client from Morocco

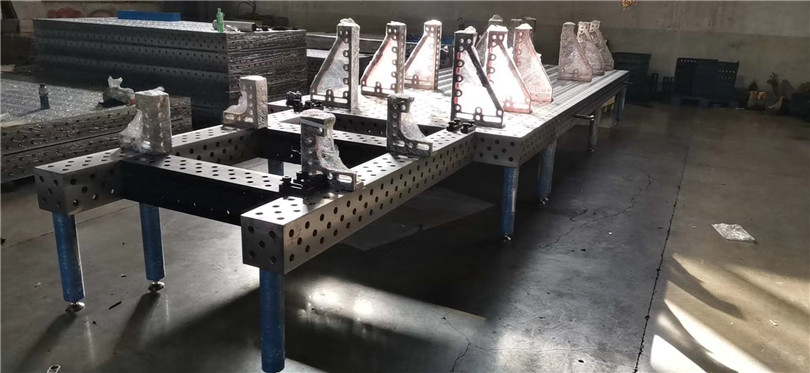

Our flexible clamping system grows with your tasks. The modular structure of the base rail system offers you the greatest possible freedom for the production of bigger than normal components.
A grid system of any size adapted to your product portfolio can be installed in your production hall. This provides you with a level installation surface over the entire area, including grid bores. The rail system is installed according to your requirements. Several versions are available to you, for example overfloor or underfloor installation. The advantage of underfloor installation is that the entire work area around the rail system is accessible for persons and vehicles.
This accessibility makes work easier, reduces the risk of accidents and thereby boosts safety and increases efficiency in manufacturing.
Product features & classification
a. According to working surfaces, tables has two types: 2D & 3D Welding table.
b. 2D Welding table has only one working surfaces and been precision machined.
3D Welding table has 5 precision machined working surfaces (1 top+4 side surfaces).
c. According to hole size of tables, they are divided into 3 series—D16/D22/D28.
d. D16 tables: Hole diameter is 16mm; Hole spacing to each other is 50±0.05mm;
Grid system 50x50mm on table top, Plate thickness is 14mm.
e. D22 tables: Hole diameter is 22mm; Hole spacing to each other is 75±0.05mm;
Grid system 50x50mm on table top, Plate thickness is 18.5mm.
f. D28 tables: Hole diameter is 28mm; Hole spacing to each other is 100±0.05mm;
Grid system 50x50mm on table top, Plate thickness is 23.5mm.
h. Material of welding tables: Steel Q345(Mn16) and Cast irons(HT300).
And all plates are with reinforcing ribs on the underneath side.
